Overview

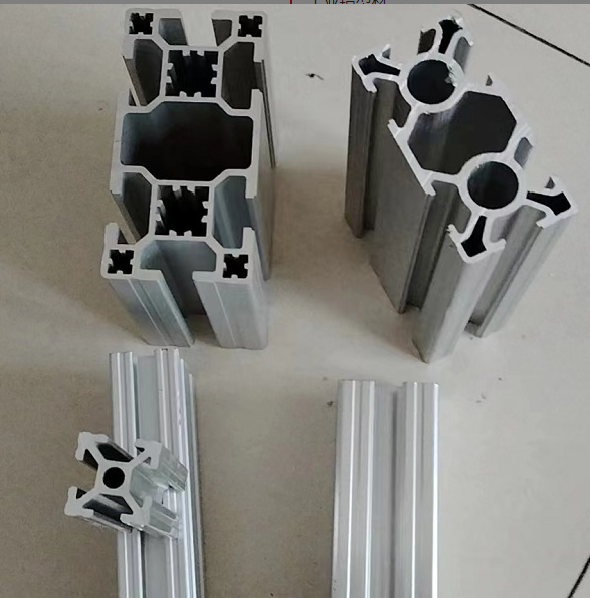

2020 aluminum extrusion is a highly versatile and durable material ideal for various industrial, commercial, and architectural applications. Known for its excellent mechanical properties, ease of assembly, and modular design, 2020 aluminum extrusion is the optimal choice for projects that demand precision, strength, and flexibility. Its T-slot design allows for quick and easy construction and reconfiguration, making it perfect for creating frames, workstations, and structural assemblies.

Product Characteristics

• Modular Design: The T-slot profile enables rapid assembly and reconfiguration, significantly reducing time and labor costs.
• High Strength: 2020 aluminum extrusion offers a strong balance of tensile and yield strength, suitable for demanding structural applications.
• Corrosion Resistance: Aluminum provides excellent resistance to atmospheric and chemical environments, ensuring long-term durability.
• Lightweight: The lightweight nature of aluminum makes these extrusions easy to handle, transport, and install.
• Good Machinability: 2020 aluminum extrusions can be easily machined, cut, and drilled, allowing for precise fabrication of detailed components.
• Weldability: The extrusions can be readily welded using various techniques, ensuring strong and reliable joints.
• Aesthetic Appeal: The anodized or powder-coated surface provides a sleek and professional look, enhancing the visual appeal of any project.

Product Parameters

1. Thickness/Width:

• Standard profile dimension of 20mm x 20mm, accommodating various application requirements.

2. Length:

• Standard lengths include 1 meter, 2 meters, and 3 meters, with custom lengths available upon request.

3. Commonly Used States:

• Various tempers such as T5, T6, and others, based on specific application needs.

4. Chemical Composition:

• The chemical composition varies based on the specific aluminum alloy used, but generally includes:
  • Aluminum (Al): Balance
  • Magnesium (Mg): 0.2-1.2%
  • Silicon (Si): 0.2-0.8%
  • Copper (Cu): 0.1-0.4%
  • Manganese (Mn): 0.1-0.9%
  • Zinc (Zn): 0.1-0.3%
  • Chromium (Cr): 0.04-0.25%
  • Other Elements: Up to 0.15% max total

5. Mechanical Properties (Example for 6063-T5 Alloy):

• Tensile Strength: 27,000 psi (186 MPa)
• Yield Strength: 21,000 psi (145 MPa)
• Elongation: 8-12%
• Hardness (Brinell): 73 HB
• Density: 2.70 g/cm³

Applications

• Industrial Automation: Frames for machinery, conveyors, and workstations.
• Manufacturing: Custom tooling, fixtures, and assembly lines.
• Robotics: Robot frames, mounts, and protective enclosures.
• Retail Displays: Modular shelving, display units, and stands.
• Construction: Structural supports, architectural elements, and building frameworks.
• DIY Projects: Custom furniture, home improvement, and hobbyist projects.

Conclusion

2020 aluminum extrusions from KXAL are engineered to meet the highest standards of quality and performance. Their exceptional strength, modular design, and aesthetic appeal make them the preferred choice for a wide range of applications. With customizable sizes and tempers, we ensure that you get the perfect material to meet your specific needs. Contact us today to learn more about our 2020 aluminum extrusions and how they can enhance your projects.
