Overview

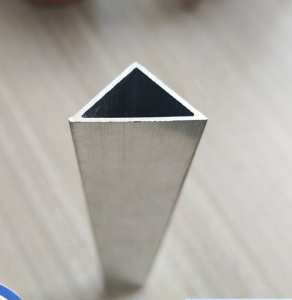

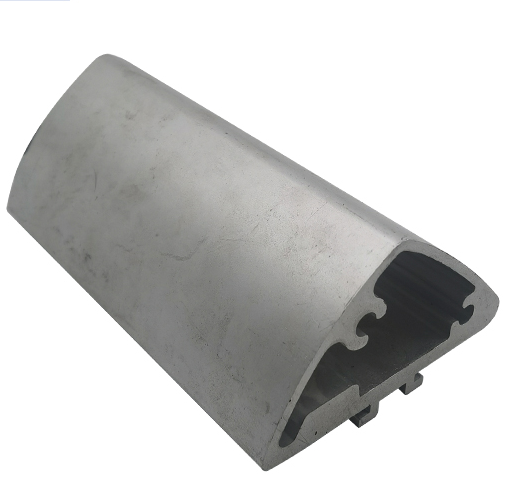

Triangle aluminum extrusions are highly versatile and durable materials used in a variety of industrial, commercial, and architectural applications. Known for their excellent mechanical properties, ease of fabrication, and resistance to corrosion, triangle aluminum extrusions are ideal for projects that require unique structural shapes, strength, and longevity. These triangular profiles are perfect for structural supports, framing, and custom tooling in numerous settings.

Product Characteristics

• Unique Design: The triangular profile provides excellent structural support and stability, ideal for specialized applications.
• High Strength: Triangle aluminum extrusions offer a robust balance of tensile and yield strength, making them suitable for demanding structural applications.
• Corrosion Resistance: Aluminum provides exceptional resistance to atmospheric and chemical environments, ensuring long-term durability.
• Lightweight: The lightweight nature of aluminum makes these extrusions easy to handle, transport, and install.
• Good Machinability: Triangle aluminum extrusions can be easily cut, machined, and drilled, allowing for precise fabrication of detailed components.
• Weldability: These extrusions can be readily welded using various techniques, ensuring strong and reliable joints.
• Aesthetic Appeal: The anodized or powder-coated surface provides a sleek and professional look, enhancing the visual appeal of any project.

Product Parameters

1. Thickness/Width:

• Available in various standard dimensions to accommodate different application requirements. Common sizes include side lengths ranging from 1/2 inch to 4 inches, with corresponding thicknesses.

2. Length:

• Standard lengths include 8 feet, 10 feet, and 12 feet, with custom lengths available upon request.

3. Commonly Used States:

• Various tempers such as T5, T6, and others, based on specific application needs.

4. Chemical Composition:

• The chemical composition varies based on the specific aluminum alloy used, but generally includes:
  • Aluminum (Al): Balance
  • Magnesium (Mg): 0.2-1.2%
  • Silicon (Si): 0.2-0.8%
  • Copper (Cu): 0.1-0.4%
  • Manganese (Mn): 0.1-0.9%
  • Zinc (Zn): 0.1-0.3%
  • Chromium (Cr): 0.04-0.25%
  • Other Elements: Up to 0.15% max total

5. Mechanical Properties (Example for 6063-T5 Alloy):

• Tensile Strength: 27,000 psi (186 MPa)
• Yield Strength: 21,000 psi (145 MPa)
• Elongation: 8-12%
• Hardness (Brinell): 73 HB
• Density: 2.70 g/cm³

Applications

• Construction: Structural supports and framing elements in buildings and infrastructure.
• Manufacturing: Custom tooling, fixtures, and assembly line components.
• Automotive: Frames, supports, and components in vehicles.
• Aerospace: Structural components and custom tooling in aircraft.
• Marine: Corrosion-resistant profiles for boats and marine structures.
• DIY Projects: Custom furniture, home improvement, and hobbyist projects.

Conclusion

Triangle aluminum extrusions from KXAL are engineered to meet the highest standards of quality and performance. Their unique design, exceptional strength, and aesthetic appeal make them the preferred choice for a wide range of applications. With customizable sizes and tempers, we ensure that you get the perfect material to meet your specific needs. Contact us today to learn more about our triangle aluminum extrusions and how they can enhance your projects.
