Overview

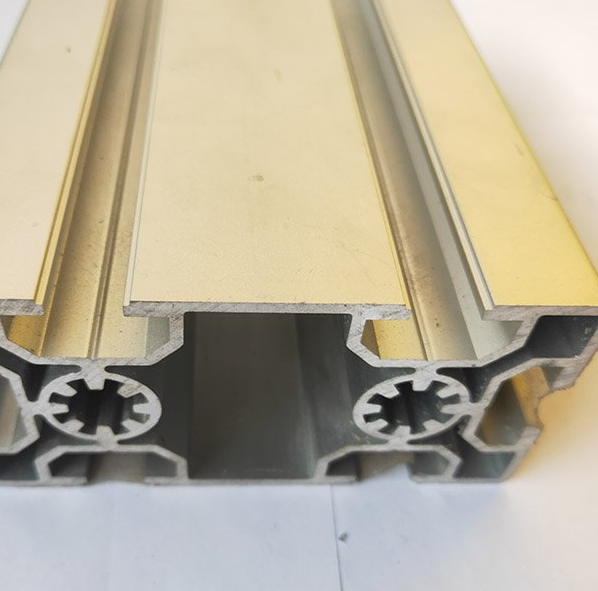

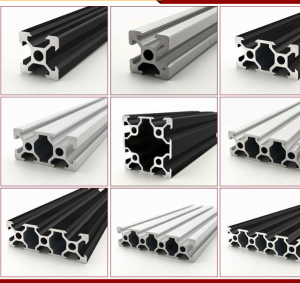

Aluminum T track extrusion is a highly versatile and durable material widely used in industrial, commercial, and woodworking applications. Known for its excellent mechanical properties, ease of assembly, and modular design, aluminum T track extrusion is the ideal choice for projects that require precision, strength, and flexibility. Its T-shaped profile allows for secure mounting and reconfiguration, making it perfect for jigs, fixtures, and various structural assemblies.

Product Characteristics

• Modular Design: The T-shaped profile allows for rapid assembly and reconfiguration, significantly reducing time and labor costs.
• High Strength: Aluminum T track extrusion offers a strong balance of tensile and yield strength, suitable for demanding structural applications.
• Corrosion Resistance: Aluminum provides excellent resistance to atmospheric and chemical environments, ensuring long-term durability.
• Lightweight: The lightweight nature of aluminum makes these extrusions easy to handle, transport, and install.
• Good Machinability: Aluminum T track extrusions can be easily machined, cut, and drilled, allowing for precise fabrication of detailed components.
• Weldability: These extrusions can be readily welded using various techniques, ensuring strong and reliable joints.
• Aesthetic Appeal: The anodized or powder-coated surface provides a sleek and professional look, enhancing the visual appeal of any project.

Product Parameters

1. Thickness/Width:

• Available in various standard dimensions to accommodate different application requirements. Common sizes include 1/4 inch, 3/8 inch, and 1/2 inch widths.

2. Length:

• Standard lengths include 3 feet, 4 feet, and 6 feet, with custom lengths available upon request.

3. Commonly Used States:

• Various tempers such as T5, T6, and others, based on specific application needs.

4. Chemical Composition:

• The chemical composition varies based on the specific aluminum alloy used, but generally includes:
  • Aluminum (Al): Balance
  • Magnesium (Mg): 0.2-1.2%
  • Silicon (Si): 0.2-0.8%
  • Copper (Cu): 0.1-0.4%
  • Manganese (Mn): 0.1-0.9%
  • Zinc (Zn): 0.1-0.3%
  • Chromium (Cr): 0.04-0.25%
  • Other Elements: Up to 0.15% max total

5. Mechanical Properties (Example for 6063-T5 Alloy):

• Tensile Strength: 27,000 psi (186 MPa)
• Yield Strength: 21,000 psi (145 MPa)
• Elongation: 8-12%
• Hardness (Brinell): 73 HB
• Density: 2.70 g/cm³

Applications

• Woodworking: Jigs, fixtures, and tool mounts for woodworking projects.
• Industrial Automation: Mounting tracks for machinery, conveyors, and workstations.
• Manufacturing: Custom tooling, fixtures, and assembly line components.
• Retail Displays: Modular shelving, display units, and stands.
• DIY Projects: Custom furniture, home improvement, and hobbyist projects.

Conclusion

Aluminum T track extrusions from KXAL are designed to meet the highest standards of quality and performance. Their exceptional strength, modular design, and aesthetic appeal make them the preferred choice for a wide range of applications. With customizable sizes and tempers, we ensure that you get the perfect material to meet your specific needs. Contact us today to learn more about our aluminum T track extrusions and how they can enhance your projects.
