Corrugated Aluminum Sheet: Comprehensive Product Introduction

Overview

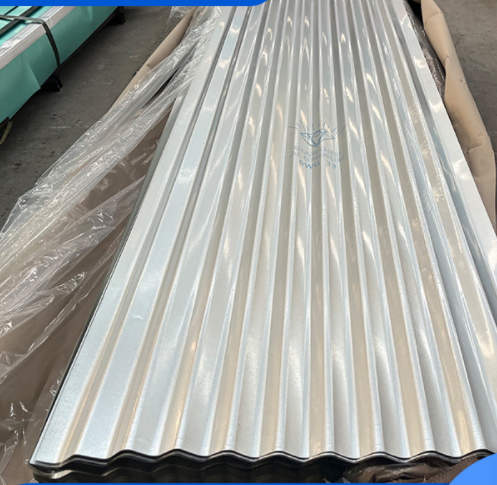

Corrugated aluminum sheets are versatile, durable, and lightweight materials with a distinctive wavy pattern. These sheets are widely used in roofing, siding, and cladding applications in residential, commercial, and industrial projects. Known for their excellent strength-to-weight ratio, corrosion resistance, and ease of installation, corrugated aluminum sheets provide an effective and aesthetically pleasing solution for various construction needs.

Product Characteristics

Lightweight and Strong

Corrugated aluminum sheets offer a high strength-to-weight ratio, making them easy to handle, transport, and install without compromising on structural integrity. This characteristic is particularly beneficial for roofing and cladding applications.

Corrosion Resistance

Aluminum’s natural resistance to corrosion ensures that corrugated sheets remain durable and long-lasting, even in harsh environmental conditions. This makes them ideal for use in coastal areas, industrial environments, and other challenging settings.

Excellent Water Shedding

The corrugated design enhances the sheet’s ability to shed water, making it highly effective for roofing applications. The wavy pattern facilitates the quick drainage of rainwater, reducing the risk of leaks and water damage.

Energy Efficiency

Corrugated aluminum sheets reflect a significant amount of sunlight, helping to maintain cooler building interiors and reducing energy costs associated with cooling. This reflective property makes them an excellent choice for energy-efficient buildings.

Easy Installation

The lightweight nature and structural strength of corrugated aluminum sheets simplify the installation process. They can be easily cut, drilled, and fastened, allowing for quick and efficient construction.

Versatile Aesthetic

Available in various colors and finishes, corrugated aluminum sheets can enhance the visual appeal of any building project. They offer both functional and decorative benefits, making them suitable for a wide range of architectural styles.

Product Parameters

Thickness

• Commonly available thicknesses: 0.4mm, 0.5mm, 0.7mm, 1.0mm
• Custom thicknesses available upon request

Length and Width

• Standard sizes: 3’x6′ (915mm x 1830mm), 3’x8′ (915mm x 2440mm), 4’x8′ (1220mm x 2440mm)
• Custom dimensions can be provided to suit specific project needs

Commonly Used States (Temper)

• H14: Strain-hardened, partially annealed
• H24: Strain-hardened, partially annealed with increased strength
• H32: Strain-hardened, 1/4 hard

Chemical Composition (Example for 3004 Aluminum Alloy)

• Aluminum (Al): 95.0-98.0%
• Manganese (Mn): 1.0-1.5%
• Magnesium (Mg): 0.8-1.3%
• Silicon (Si): 0.3% max
• Iron (Fe): 0.7% max

Mechanical Properties (Example for 3004-H14)

• Tensile Strength: 180-210 MPa
• Yield Strength: 150 MPa
• Elongation: 8-10%
• Hardness: 47 Brinell

Applications

• Roofing: Ideal for residential, commercial, and industrial roofing applications due to its strength, durability, and excellent water-shedding capabilities.
• Siding and Cladding: Provides a durable and aesthetically pleasing solution for building exteriors, offering protection against the elements and enhancing visual appeal.
• Fencing: Suitable for creating sturdy and long-lasting fences that can withstand harsh weather conditions.
• Agricultural Buildings: Used in barns, sheds, and other agricultural structures, offering durability and easy maintenance.

Conclusion

Corrugated aluminum sheets are a superior choice for a wide range of construction applications, offering a combination of strength, lightweight properties, and excellent corrosion resistance. Their distinctive wavy pattern enhances water shedding and adds to the aesthetic appeal of buildings. With customizable options in thickness, size, and finish, corrugated aluminum sheets can meet the specific needs of any project, ensuring both functionality and visual appeal.
