Overview

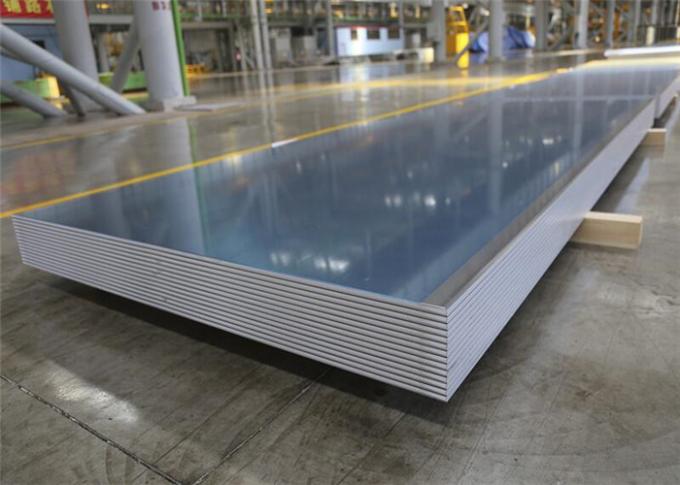

The MIC 6 aluminum plate is a cast aluminum tooling plate known for its exceptional flatness, stability, and consistent performance. This plate is widely used in precision machining applications, including tooling, fixtures, and jigs, as well as in the aerospace, automotive, and manufacturing industries. MIC-6 aluminum plate is engineered to meet the stringent requirements of high-precision environments, offering a reliable solution for applications that demand superior dimensional stability and minimal internal stress.

Product Characteristics

• Superior Flatness: MIC 6 aluminum plate is cast to ensure excellent flatness, making it ideal for precision machining and tooling applications.
• Dimensional Stability: This plate is known for its minimal internal stress, which reduces the likelihood of warping or distortion during machining.
• Corrosion Resistance: Like other aluminum alloys, MIC 6 offers natural corrosion resistance, extending the lifespan of the plate in various environments.
• Easy Machinability: MIC 6 is easy to machine, providing smooth finishes and precise tolerances, which is essential for creating high-quality components.
• Uniform Thickness: The plate is produced with consistent thickness, ensuring reliable performance across the entire surface.

Product Parameters

• Thickness: Available in a range of thicknesses, typically from 0.25 inches to 4 inches
• Length: Standard lengths include 96 inches, with custom lengths available upon request
• Width: Common widths include 48 inches and 60 inches, with custom sizes available
• Commonly Used State: Stress-relieved and pre-machined (as-cast)

Chemical Composition

• Aluminum (Al): Balance
• Magnesium (Mg): 0.4-0.7%
• Silicon (Si): 0.6-1.0%
• Iron (Fe): 0.2-0.4%
• Copper (Cu): 3.5-4.5%
• Manganese (Mn): 0.4-0.7%
• Zinc (Zn): 0.25% max
• Titanium (Ti): 0.05% max

Mechanical Properties

• Tensile Strength: 22,000 psi (152 MPa)
• Yield Strength: 18,000 psi (124 MPa)
• Elongation: 3-5%
• Hardness: Brinell 65-75 HB

The MIC 6 aluminum plate is the go-to choice for applications requiring precision, stability, and reliability. Its superior flatness and minimal internal stress make it perfect for tooling, jigs, and fixtures, ensuring that your projects maintain the highest standards of accuracy and quality.
